MSI PRO B860M-A WiFi Motherboard, mATX – Supports Intel Core Ultra Processors (Series 2), LGA 1851-12 DRPS, DDR5 Memory Boost (8600+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

PRO B860M-A WIFI: Business Elegance Designed for efficient and stable performance on the Intel B860 chipset (Intel Core Ultra Processors (Series 2), LGA 1851), the MSI PRO B860M-A WIFI motherboard includes premium GPU support with a PCIe 5.0 x16 slot, improved DDR5 memory support (8600+ MT/s OC), and extensive M.2 Gen5 storage options (with EZ M.2 Shield Frozr II). To ensure stable power delivery to the latest Intel Core Ultra Processors (Series 2), the PRO B860M-A WIFI is equipped with a 12 Duet Rail Power System (P-PAK) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI B860 PRO motherboards feature durable server-grade PCBs and all-new Surface Mount Technology (SMT) solder welding for improved signal clarity. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 5G LAN, Thunderbolt 4 Type-C (40Gbps) with 8K display support, and 7.1 HD audio. For professionals looking for an efficient Intel B860 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI PRO B860M-A WIFI epitomizes business elegance.

ULTRA POWER – SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE – The PRO B860M-A WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B860 chipset with Core Boost architecture

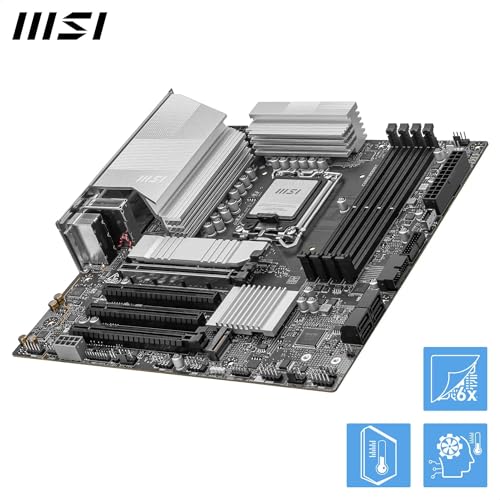

FROZR GUARD – Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)

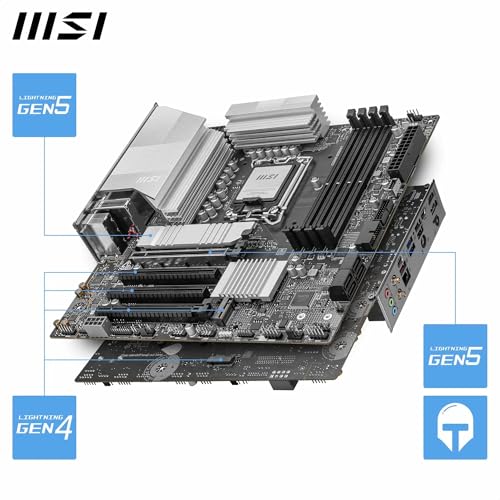

DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8600+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
TRIPLE M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps

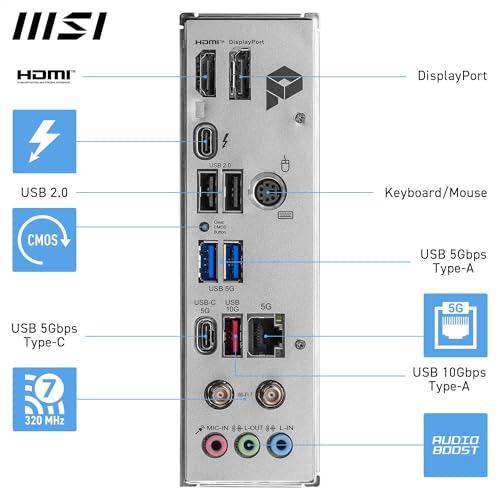

ULTRA CONNECT – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include Thunderbolt 4 Type-C with display output and 7.1 HD Audio with Audio Boost
