Thermaltake Toughpower GX3 850W 80Plus Gold SLI/Crossfire Ready ATX 3.0 Power Supply; PCIe5 12VHPWR Connector Included; 5 Year Warranty; PS-TPD-0850NNFAGU-3

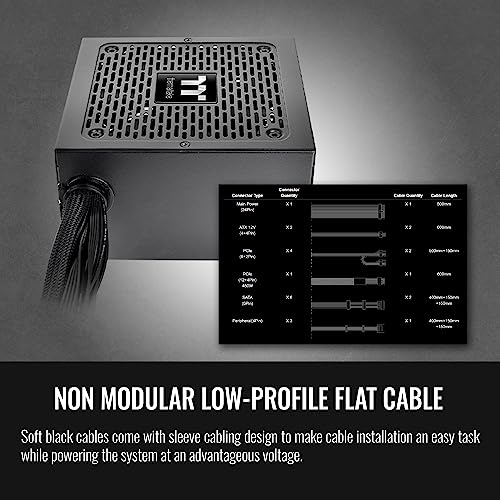

Toughpower GX3 series is 80 PLUS Gold certified non-modular PSU. The GX3 series is compatible with Intel’s ATX 3.0 specifications. Designed with a local PCIe Gen 5.0 connector, it may possibly power up next-gen technology with one new 12VHPWR cable. Featuring a 120mm Fluid Dynamic Bearing Fan to stay friction at truly low levels. To offer protection to the hardware, GX3 is built with industry grade protections. Non modular soft black cables include sleeve cabling design to make cable installation a very simple task at the same time as powering the system at an advantageous voltage. •P/N: PS-TPD-0850NNFAGU-3 •MODEL: TPD-850AH2NLG •WATTS: 850W •COLOR: Black •DIMENSIONS: 150mm(W)x86mm(H)x140mm(D) •POWER GOOD SIGNAL: one hundred-150 msec •HOLD UP TIME: 17msec •INPUT CURRENT: 15A-8A •INPUT FREQUENCY RANGE: 50Hz/60Hz •INPUT VOLTAGE: one hundred-240V~ •OPERATING TEMPERTURE: 5°C to plus 40°C •OPERATING HUMIDITY: 20% to 85%,non-condensing •STORAGE TEMPERTURE: -40°C to plus 55°C •STORAGE HUMIDITY: 10% to 95%, non-condensing •COOLING SYSTEM: 12cm FDB Fan •EFFICIENCY: Meet 80 PLUS Gold at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: FCC/ICES/CB/cTUVus/S-mark •PCI-E 6 plus 2PIN: 4 •PCI-E 12 plus 4PIN: 1 •PCI-E CONNECTOR: OVP/UVP/OCP/OPP/OTP/SCP.

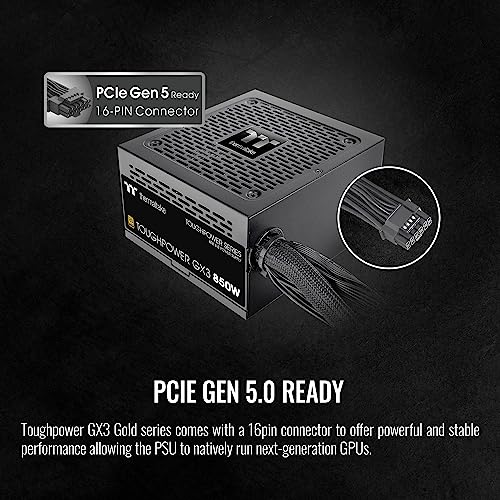

Power Up the Next Generation Hardware with PCIe Gen. 5 In a position GX3 850W
Fully Compatible with Intel ATX 3.0 Standards
Ultra Quiet 120mm Fluid Dynamic Bearing Fan
Built-in Industrial Grade Protection

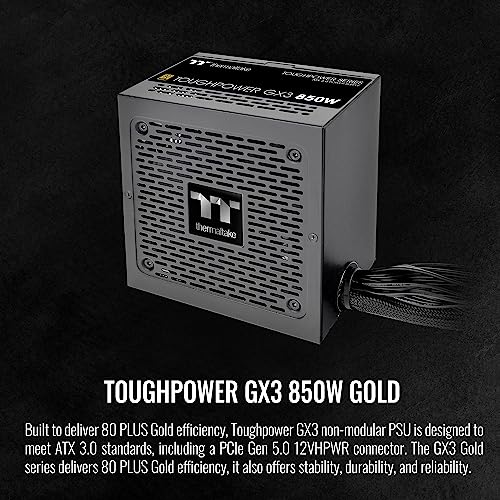

80 PLUS Gold Certified and C6/C7 States In a position
